[Android] 19. 바텀 네비게이션 / 리스트 뷰 ① : 리스트 뷰로 리스트 출력, 선택한 항목 하이라이트

https://github.com/upcake/Class_Examples

교육 중에 작성한 예제들은 깃허브에 올려두고 있습니다.

gif 파일은 클릭해서 보는 것이 정확합니다.

---

- 바텀 네비게이션(Bottom Navigation) -

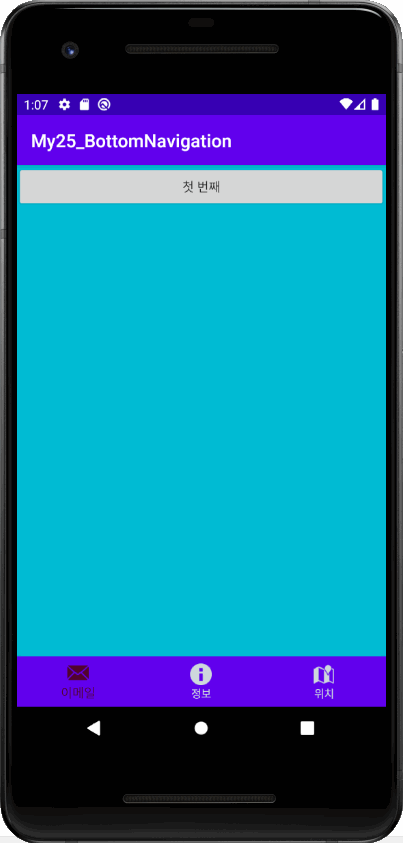

▲바텀 네비게이션 작동 화면

▼activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >

    <FrameLayout
        android:id="@+id/container"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_behavior="@string/appbar_scrolling_view_behavior"/>

    <com.google.android.material.bottomnavigation.BottomNavigationView
        android:id="@+id/bottom_navigation"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        app:itemBackground="@color/colorPrimary"
        app:menu="@menu/menu_bottom"
        app:itemIconTint="@drawable/item_color"
        app:itemTextColor="@drawable/item_color"/>

</RelativeLayout>



▼MainActivity.java

package com.example.my25_bottomnavigation;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.MenuItem;
import android.widget.Toast;

import com.google.android.material.bottomnavigation.BottomNavigationView;

public class MainActivity extends AppCompatActivity {
    //프래그먼트 객체 선언
    Fragment1 fragment1;
    Fragment2 fragment2;
    Fragment3 fragment3;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //프래그먼트 객체 초기화
        fragment1 = new Fragment1();
        fragment2 = new Fragment2();
        fragment3 = new Fragment3();

        //화면에 프래그먼트1 출력
        getSupportFragmentManager().beginTransaction().replace(R.id.container, fragment1).commit();

        //바텀 네비게이션 객체 초기화
        BottomNavigationView bottomNavigationView = findViewById(R.id.bottom_navigation);

        //바텀 네비게이션에 이벤트 추가
        bottomNavigationView.setOnNavigationItemSelectedListener(new BottomNavigationView.OnNavigationItemSelectedListener() {
            @Override
            public boolean onNavigationItemSelected(@NonNull MenuItem item) {
                //바텀 네비게이션 버튼에 눌렀을때 화면 바뀌는 기능 추가
                //item.getItemId() 아이템의 아이디를 바로 가져옴
                switch (item.getItemId()) {
                    case R.id.tab1:
                        Toast.makeText(MainActivity.this, "첫 번째 탭", Toast.LENGTH_SHORT).show();
                        getSupportFragmentManager().beginTransaction().replace(R.id.container, fragment1).commit();
                        return true; //return true 밑으로는 작동이 되지 않는다.

                    case R.id.tab2:
                        Toast.makeText(MainActivity.this, "두 번째 탭", Toast.LENGTH_SHORT).show();
                        getSupportFragmentManager().beginTransaction().replace(R.id.container, fragment2).commit();
                        return true;

                    case R.id.tab3:
                        Toast.makeText(MainActivity.this, "세 번째 탭", Toast.LENGTH_SHORT).show();
                        getSupportFragmentManager().beginTransaction().replace(R.id.container, fragment3).commit();
                        return true;
                }
                return false;
            }
        });
    }
}



▼menu_bottom.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <!--showAsAction="ifRoom" 공간이 있으면 보이게 설정-->
    <!--enabled="true" 클릭 가능 여부 설정-->
    <item
        android:id="@+id/tab1"
        app:showAsAction="ifRoom"
        android:enabled="true"
        android:icon="@android:drawable/ic_dialog_email"
        android:title="이메일" />

    <item
        android:id="@+id/tab2"
        app:showAsAction="ifRoom"
        android:enabled="true"
        android:icon="@android:drawable/ic_dialog_info"
        android:title="정보" />

    <item
        android:id="@+id/tab3"
        app:showAsAction="ifRoom"
        android:enabled="true"
        android:icon="@android:drawable/ic_dialog_map"
        android:title="위치" />
</menu>



▼item_color.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <!--선택 되면 색깔 변경-->
    <item
        android:state_checked="true"
        android:color = "#51032D" />

    <item android:color = "#CFD8DC"/>
</selector>



▼fragment1.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#00BCD4">

    <Button
        android:id="@+id/button2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="첫 번째"/>

    <TextView
        android:id="@+id/textView1"
        android:layout_width="match_parent"
        android:layout_height="312dp"
        android:textColor="#FFFFFF"
        android:textSize="24sp" />
</LinearLayout>



▼Fragment1.java

package com.example.my25_bottomnavigation;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.fragment.app.Fragment;

import com.google.android.material.tabs.TabLayout;

public class Fragment1 extends Fragment {
    //객체 선언
    Button button2;
    TextView textView1;

    @Nullable
    @Override
    public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        //XML, java 연결
        //XML이 메인에 직접 붙으면 true, 프래그먼트에 붙으면 false
        ViewGroup rootView = (ViewGroup) inflater.inflate(R.layout.fragment1, container, false);

        //객체 초기화
        textView1 = rootView.findViewById(R.id.textView1);
        button2 = rootView.findViewById(R.id.button2);

        return rootView;
    }
}



▼fragment2.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#2196F3">

    <Button
        android:id="@+id/button3"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="두 번째"/>

    <TextView
        android:id="@+id/textView2"
        android:layout_width="match_parent"
        android:layout_height="324dp"
        android:textColor="#FFFFFF"
        android:textSize="24sp" />
</LinearLayout>



▼Fragment2.java

package com.example.my25_bottomnavigation;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.fragment.app.Fragment;

import com.google.android.material.tabs.TabLayout;

public class Fragment2 extends Fragment {
    //객체 선언
    Button button3;
    TextView textView2;

    @Nullable
    @Override
    public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        //XML, java 연결
        //XML이 메인에 직접 붙으면 true, 프래그먼트에 붙으면 false
        ViewGroup rootView = (ViewGroup) inflater.inflate(R.layout.fragment2, container, false);

        //객체 초기화
        textView2 = rootView.findViewById(R.id.textView2);
        button3 = rootView.findViewById(R.id.button3);

        return rootView;
    }
}



▼fragment3.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#673AB7">

    <Button
        android:id="@+id/button4"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="세 번째"/>

    <TextView
        android:id="@+id/textView3"
        android:layout_width="match_parent"
        android:layout_height="321dp"
        android:textColor="#FFFFFF"
        android:textSize="24sp" />
</LinearLayout>



▼Fragment3.java

package com.example.my25_bottomnavigation;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.fragment.app.Fragment;

import com.google.android.material.tabs.TabLayout;

public class Fragment3 extends Fragment {
    //객체 선언
    Button button4;
    TextView textView3;

    @Nullable
    @Override
    public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        ViewGroup rootView = (ViewGroup) inflater.inflate(R.layout.fragment3, container, false);

        //객체 초기화
        textView3 = rootView.findViewById(R.id.textView3);
        button4 = rootView.findViewById(R.id.button4);

        return rootView;
    }
}





 - 리스트 뷰(List View) ① : 리스트 뷰로 리스트 출력, 선택한 항목 하이라이트 -

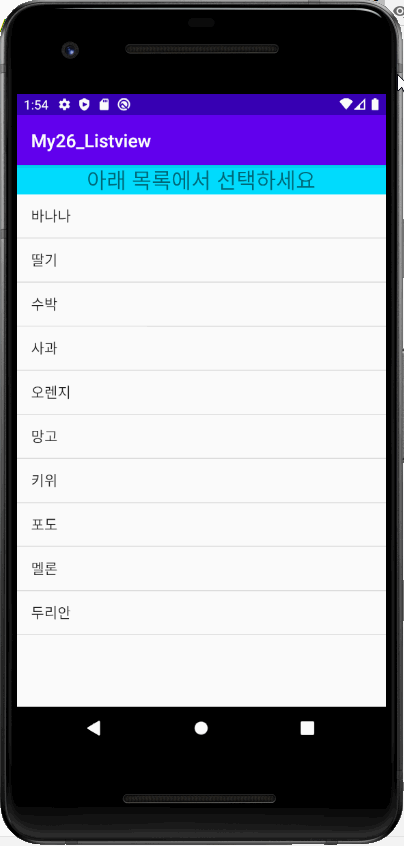

▲리스트 뷰 작동 화면



▼activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <TextView
        android:id="@+id/textView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@android:color/holo_blue_bright"
        android:gravity="center"
        android:text="아래 목록에서 선택하세요"
        android:textSize="24sp" />

    <ListView
        android:id="@+id/listView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:listSelector="@android:color/holo_green_light"/>

</LinearLayout>



▼MainActivity.java

package com.example.my26_listview;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;

import java.util.ArrayList;

/*
ListView : 클릭 이벤트를 제공해줘서 편리함.
            메모리 활용이 비효율적

RecyclerView : 클릭 이벤트를 제공해주지않아서 불편함
               메모리 활용이 효율적
*/

public class MainActivity extends AppCompatActivity {
    //객체 선언
    TextView textView;
    ListView listView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //객체 초기화
        textView = findViewById(R.id.textView);
        listView = findViewById(R.id.listView);

        //데이터를 담을 리스트와 어댑터 설정
        ArrayList<String> list = new ArrayList<>();
        //어댑터 : 보여지는 View와 View에 올려질 Data를 연결하는 일종의 Bridge
        //android.R.layout.simple.list_item_1 : 단 하나의 String 타입 데이터를 표시하게끔 만들어진 일종의 기본 레이아웃 양식
        ArrayAdapter<String> adapter = new ArrayAdapter<>(this, android.R.layout.simple_list_item_1, list);
        listView.setAdapter(adapter);

        //어댑터에 출력된 아이템에 클릭시 기능 추가
        listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                String selectedItem = (String) parent.getItemAtPosition(position);
                textView.setText(selectedItem);
            }
        });

        //리스트에 데이터 추가
        list.add("바나나");
        list.add("딸기");
        list.add("수박");
        list.add("사과");
        list.add("오렌지");
        list.add("망고");
        list.add("키위");
        list.add("포도");
        list.add("멜론");
        list.add("두리안");
    }
}
